41*21 / 41*41 / 41*82mm 3 sizes in 1 Solor bracket roll forming machine in Saudi Arabia

4121 / 4141 / 41*82mm 3 sizes in 1 Solor bracket roll forming machine in Saudi Arabia

Short Description:

Photovoltaic bracket forming machine | Solar photovoltaic bracket forming machine

Raw material: Galvanized steel

Warranty: 3 years

Export port: Tianjin port

Payment Terms: T/T, L/C, D/A, D/P

Container: 40 feet container

Working days: 50 working days

Send email to us Download as PDF

Product Detail

Product Tags

Solor bracket roll forming machine introduction

Solor bracket roll forming machine popular sell in many countries, common Solor bracket thickness from 1.5-3 mm, material use Galvanized steel material

We sell lots of such machine to Mexico, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size

This machine we make 2 sizes in one machine, 40*20mm and 40*40mm. Machine size change easily, save space and save money for custoemr

Product show 41*21mm

Solor bracket product show - 41*21mm

Work video of solor bracket roll forming machine - 41*21mm

Product show 41*41mm

Work video of solor bracket roll forming machine - 41*41mm

Product show 41*82mm

Work video of solor bracket roll forming machine - 41*82mm

Work flow of solor bracket roll forming machine

Decoiler-Puncher offline-roll forming machine-PLC control box-hydraulic cutter-Run out table

Diameter of solor bracket roll forming machine

NO	Type		Specification
1	Raw material	Type	Galvanized steel
		Feeding width	As customer' drawing
		Thickness	2.5 mm

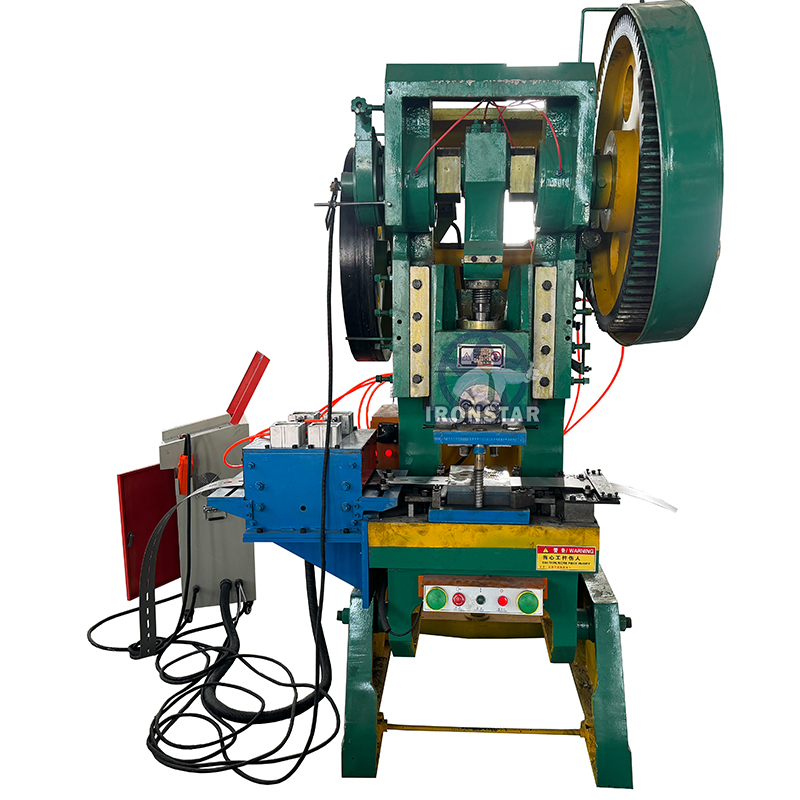

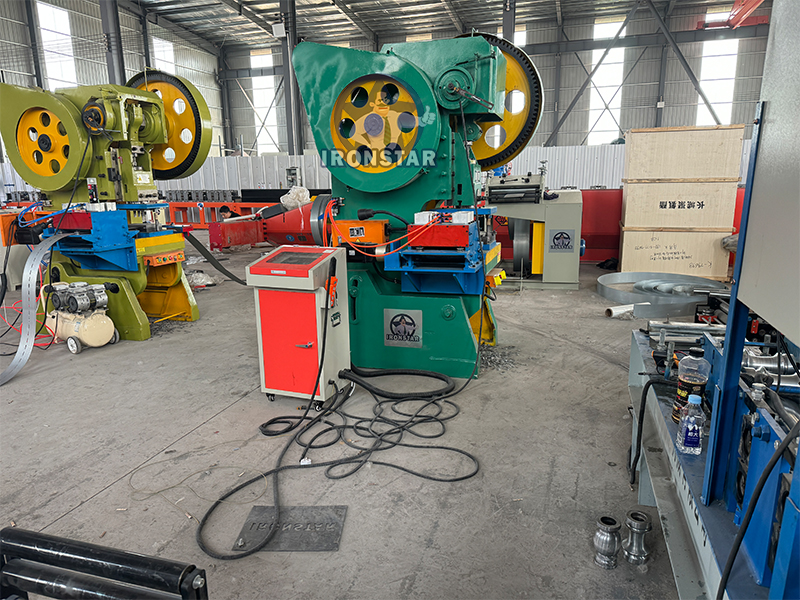

2	Puncher offline	Capacity	63 tons, automatic
2	Puncher offline	Size	1.511.5 m
3	Decoiler	Operation	Electric, automatic work
3	Decoiler	Weight apacity	3 Tons
4	Main body	Roller station	18 rows
		Diameter of shaft	85 mm
		Shaft material	45# with 0.05mm chrome
		Roller material	45# with 0.05mm chrome
		Frame	350-H beam
		Frame thickness	18 mm
		Machine size	About 8.50.81 m
		Machine weight	About 8.5 tons
		Machine color	As customer need
		Operation	Hydraulic automatic
		Working speed	Common speed 8-20 m/min
5	Cutter	Hardness	50-65 HRC
		Cutting tolerance	± 1mm
		Material	Cr 12
		Operate	Hydraulic cutting
6	Power	Driving way	Chain 1.5 inch
		Main motor	15 KW
		Pump motor for cutter	5.5 KW
		Voltage	380V/50HZ, 3 phase or ass customer' request
7	Control box	Electric box	PLC control system, inventer
		Screen	Touchable screen
		PLC brand	Delta made in Taiwan
		Inverter brand	Delta made in Taiwan or SAJ
		Language	Chinese and English or as customer' request
8	Stacker	Operation	Manual
8	Stacker	Length	2-3 m

Feeder decoiler

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 3 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

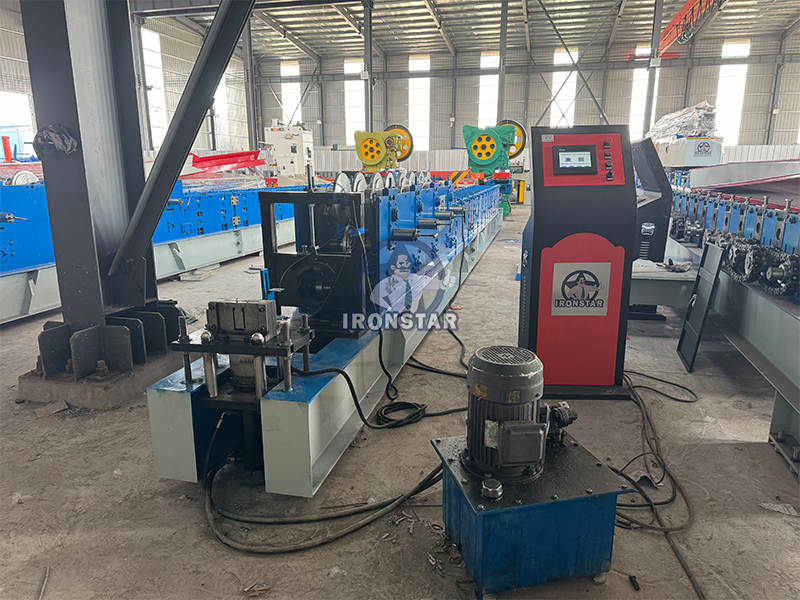

Solor bracket roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

Feeding table

Insert raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel

Control box

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need

Hydraulic oil pump

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Receiving table

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

Spare parts free for customer
