Automaric decoiler – cut to length – transport – auto stacker whole line machine

Automaric decoiler – cut to length – transport – auto stacker whole line machine

Short Description:

Cut to length whole line can cut to your want length automatically. Speed common 10-30 m/min. If you want to buy cut to lenth line, please tell me your used material, thickness and width.



Cut to length machine | cut to length metal sheet cutting and collect line


  • Raw material: Galvanized steel or PPGI
  • Warranty: 3 years
  • Export port: Tianjin port
  • Payment Terms: T/T, L/C, D/A, D/P
  • Container: 40 feet container
  • Working days: 50 working days
  • Product Detail

    Product Tags

    Work video of cut to length line

    Diameter of cut to length line

    NO

                Type

    Specification

    1

    Raw material Type Galvanized steel or PPGI
    Feeding width 1250/1220/1200/1000mm or as customer' need
    Thickness 0.3-0.8 mm

    3

    Main body Machine size About 18m*6m (length*width)
    Voltage 380V/50HZ, 3 phase
    Working speed Common speed 0-30 m/min

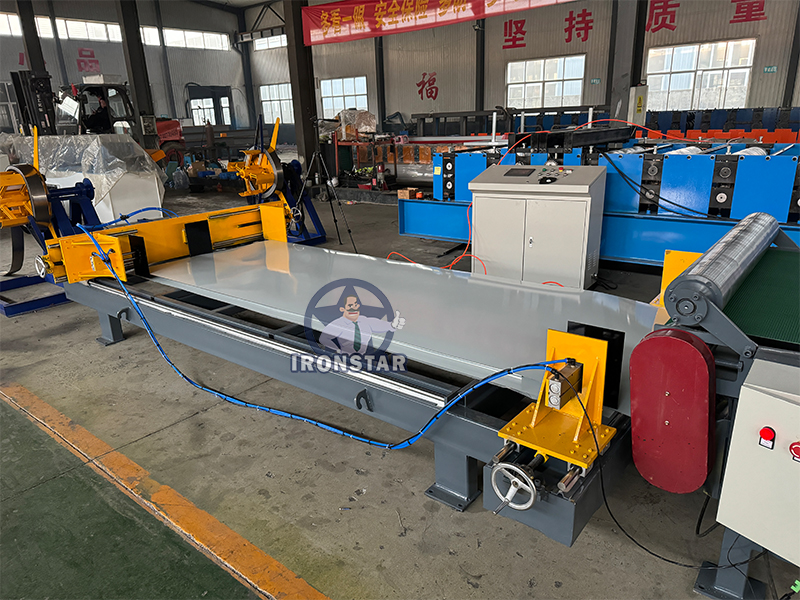

    Automatic uncoiler with loading car

    This line is used to cut to fix length strips, and then  collect on the stacker automatically.

    5
    1
    3
    4
    2

    Spare parts free for customer

    QQ截图20211229161100

    Packing & Payment & Service

    1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

    2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

    3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 50 working days after receipt of deposit from the buyer.

    4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

    5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

    6). Package: One complete equipment needs a 40 feet container to hold.

    Certificate CE & ISO9001

    QQ截图20211229161629
