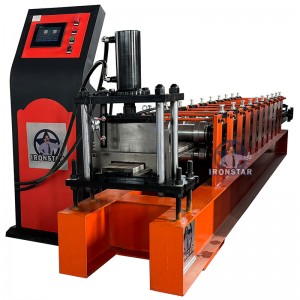

211 Omega bracket roll forming machine in Russia

211 Omega bracket roll forming machine in Russia

Short Description:


  • Raw material: Galvanized steel
  • Warranty: 3 years
  • Export port: Tianjin port
  • Payment Terms: T/T, L/C, D/A, D/P
  • Container: 40 feet container
  • Working days: 45 working days
  • Product Detail

    Product Tags

    Product show

    英文网站
    英文网站1

    Work video of Omega bracket roll forming machine

    Work flow of Omega bracket roll forming machine

    Decoiler-Puncher offline-roll forming machine-PLC control box-hydraulic cutter-Run out table

    roll forming machine work flow

    Diameter of Omega bracket roll forming machine

    NO

                Type

    Specification

    1

    Raw material Type Galvanized steel
    Feeding width As customer' drawing
    Thickness 2.5 mm
    2 Decoiler Operation Manual work
    Weight apacity 3 Tons
    3 Main body Roller station 10 rows
    Diameter of shaft 80 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Frame 350-H beam
    Frame thickness 20 mm
    Machine size About 6.5*0.8*1 m
    Machine weight About 4.5 tons
    Machine color As customer need
    Operation Hydraulic automatic
    Working speed Common speed 8-20 m/min
    4 Cutter Hardness 50-65 HRC
    Cutting tolerance ± 1mm
    Material Cr 12
    Operate Hydraulic cutting
    5 Power Driving way Chain 2 inch
    Main motor 15 KW
    Pump motor for cutter 5.5 KW
    Voltage 380V/50HZ, 3 phase or ass customer' request

    6

    Control box Electric box PLC control system, inventer
    Screen Touchable screen
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan or SAJ
    Language Chinese and English or as customer' request
    7 Stacker Operation Manual
    Length 2-3 m

    Feeder decoiler

    3T MANUAL (2)

    It is used to stand the steel coil and uncoil, keep them work stably

    Loading capacity: 3 tons

    Coil inner size: 470-530 mm

    Work type: Manual operation

    Color: As customer' request

    Omega bracket roll forming machine

    Roller material: 45# steel with 0.05mm chrome

    roller surfaces polish, hard plating dealing

    Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

    7
    8
    6
    3
    4

    Machine cutter

    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

    Material of blades: Cr12, quenching treatment

    9

    Feeding table

    5

    Insert  raw material (steel plate) through the beach to manufacture and process

    It can guarantee coil go straight and the out products neat, parallel

    Control box


    DETAL PLC control system

    Target piece`s length is adjustable and digit

    Two modes operate: automatic and manual type

    Button press and screen touch operate, easy operate

    Language: Chinese and English or as acustomer' need

    Hydraulic oil pump


    Hydraulic oil into the hydraulic oil tank

    Pump motor drives the cutter work

    Motor Power: 3KW

    Hydraulic oil: 46# Oil

    add capacity: oil add 3/4 of box capacity

    Oil pressure: 8-10 MPa

    Receiving table


    Length: Common 2-3 m

    Operate : Manual work

    Used to collect the finished pieces

    Support roller to transmit pieces

    Easy for panel take away by forklifts

    Spare parts free for customer

    QQ截图20211229161100

    Packing & Payment & Service

    1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

    2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

    3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

    4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

    5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

    6). Package: One complete equipment needs a 20 feet container to hold.

    Certificate CE & ISO9001

    QQ截图20211229161629
