PU foam shutter door roll forming machine for Morocco
Work flow of Pu foam shutter door roll forming machine
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
Diameter of Pu foam shutter door roll forming machine
|
NO |
Type |
Specification | |
|
1 |
Raw material | Type | PPGI and GI or Aluminium |
| Feeding width | As customer' drawing | ||
| Thickness | 0.3-0.6 mm | ||
|
2 |
Decoiler | Operation | Manual |
| Weight apacity | 3 Tons | ||
|
3 |
Main body | Roller station | 42 rows |
| Diameter of shaft | 50 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | 45# with 0.05mm chrome | ||
| Frame | 320-H beam | ||
| Frame thickness | 16 mm | ||
| Machine size | About 16*0.8*0.8 m | ||
| Machine weight | About 4 tons | ||
| Machine color | As customer need | ||
| Operation | Automatic | ||
| Working speed | Normal speed: 5-10 m/min | ||
| Punching speed: 3-5 m/min | |||
| 4 | Cutter | Cutting power | 2.2 kw |
| Cutting tolerance | ± 1mm | ||
| Material | Cr 12 | ||
| Operate | Pneumatic following cutting device | ||
| 5 | Power | Driving way | Chain 1 inch |
| Main motor | 4 KW | ||
| Voltage | 380V/50HZ, 3 phase or ass customer' request | ||
|
6 |
Control box | Language | Chinese and English or as customer' request |
| 7 | Stacker | Operation | Manual |
| Length | 2-3 m | ||
Product show
Feeder decoiler
It is used to stand the steel coil and uncoil, keep them work stably
Loading capacity: 3 tons
Coil inner size: 470-530 mm
Work type: Manual operation
Color: As customer' request

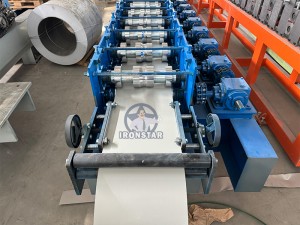

Pu foam shutter door roll forming machine
Roller material: 45# steel with 0.05mm chrome
roller surfaces polish, hard plating dealing
Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
Machine cutter
It adopts the air pump drive and automatic location to decide the dimension and cut the target products.
Feeding table
Insert raw material (steel plate) through the beach to manufacture and process
It can guarantee coil go straight and the out products neat, parallel
Control box
Target piece`s length is adjustable and digit
Two modes operate: automatic and manual type
Button press operate, easy operate
Language: Chinese and English or as acustomer' need
Receiving table
Length: Common 2-3 m
Operate : Manual work
Used to collect the finished pieces
Support roller to transmit pieces
Easy for panel take away by forklifts
Spare parts free for customer
Packing & Payment & Service
1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.
2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.
3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 50 working days after receipt of deposit from the buyer.
4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.
5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.
6). Package: One complete equipment needs a 40 feet container to hold.
Certificate CE & ISO9001
