Automatic vertical crimp machine

Short Description:

Vertical automatic crimp machine can curve to your want shape and length automatically. Speed common 3-6 m/min, if you want to more higher speed, can design to servo motor type.



We sell lots of such machine to India, Thailand, Russia, Saudi Arabic, Oman etc,  Size can customize can your need size



Crimping machine | curving machine | automatic vertical crimp machine


  • Raw material: PPGI
  • Warranty: 3 years
  • Export port: Tianjin port
  • Payment Terms: T/T, L/C, D/A, D/P
  • Container: 20 feet container
  • Working days: 20 working days
  • Product Detail

    Product Tags

    Diameter of vertical crimp machine

    NO

                Type

    Specification

    1

    Raw material Type PPGI
    Feeding width 1250/1220/1200/1000mm or as customer' need
    Thickness 0.3-0.8 mm

    2

    Main body Roller station 2 rollers
    Diameter of shaft 75 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Frame Steel plate welding
    Machine size About 1.8*1.8*1.5 m
    Machine weight About 1 ton
    Machine color As customer need
    Operation Hydraulic automatic
    Working speed Common speed 3-8m/min
    3 Power Driving way Chain 1 inch
    Main motor 3 KW
    Voltage 380V/50HZ, 3 phase or ass customer' request

    4

    Control box Electric box PLC control system, inventer
    Language Chinese and English or as customer' request

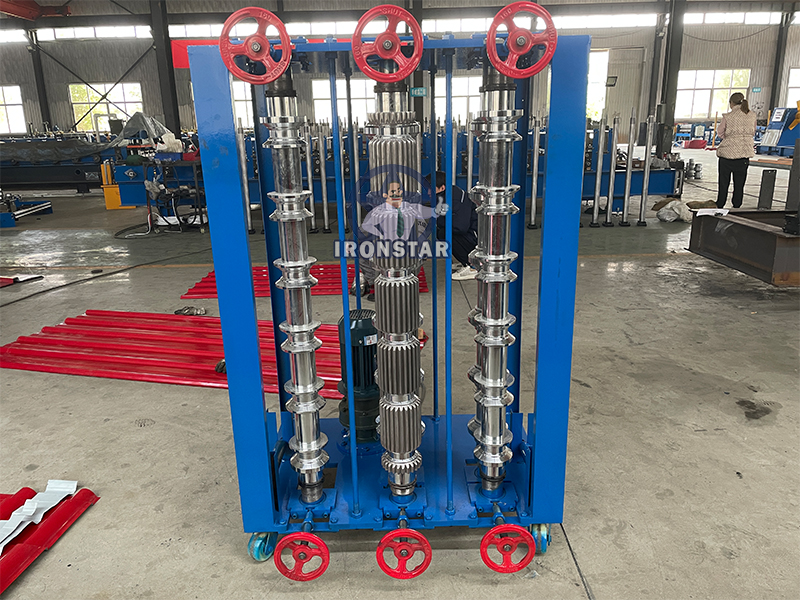

    Vertical crimp machine

    Roller material: 45# steel with 0.05mm chrome

    roller surfaces polish, hard plating dealing

    Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

    Roll forming machine 3
    Roll forming machine
    3
    4
    5
    6

    Control box


    DETAL PLC control system

    Target piece`s length is adjustable and digit

    Two modes operate: automatic and manual type

    Button press and screen touch operate, easy operate

    Language: Chinese and English or as acustomer' need

    Hydraulic oil pump


    Hydraulic oil into the hydraulic oil tank

    Pump motor drives the cutter work

    Motor Power: 3KW

    Hydraulic oil: 46# Oil

    add capacity: oil add 3/4 of box capacity

    Oil pressure: 8-10 MPa

    Spare parts free for customer

    QQ截图20211229161100

    Packing & Payment & Service

    1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

    2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

    3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 20 working days after receipt of deposit from the buyer.

    4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

    5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

    6). Package: One complete equipment needs a 20 feet container to hold.

    Certificate CE & ISO9001

    QQ截图20211229161629
