5 ton 500mm width double head hydraulic decoiler with car

Short Description:

5 ton hydraulic decoiler popular sell in many countries, common coil stand capacity include 3 ton, 5 ton, 7 ton, 10 ton and 15 ton.

We sell lots of such 5 ton hydraulic decoiler to Indonesia, Philippines, India, Thailand, Russia etc, Size can customize can your need size

Double head 500mm hydraulic decoiler with car | 2 head automatic decoiler machine

Raw material: Galvanized steel or PPGI

Warranty: 3 years

Export port: Tianjin port

Payment Terms: T/T, L/C, D/A, D/P

Container: 20 feet container

Working days: 15 working days

Send email to us Download as PDF

Product Detail

Product Tags

5 ton double head hydraulic decoiler work video

Diameter of double head hydraulic decoiler

NO	Type		Specification
1	Raw material	Type	Galvanized steel or PPGI
		Feeding width	500 mm
		Thickness	0.3-3 mm
2	Main body	Weight capacity	5 Tons
		Machine size	About 31.61.2 m
		Machine weight	About 2 tons
		Machine color	As customer need
		Operation	Automatic work
		Working speed	8-20 m/min hydraulic motor
3	Power	Driving way	Chain 1 inch
		Main motor	5.5 KW
		Pump motor for cutter	3 KW
		Voltage	380V/50HZ, 3 phase or ass customer' request
4	Control box	Inverter brand	Delta made in Taiwan or SAJ
4	Control box	Language	Chinese and English or as customer' request

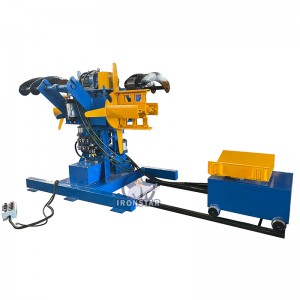

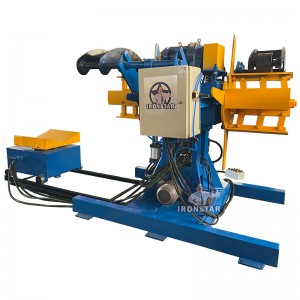

double head hydraulic decoiler picture

Control box

Speed control by inverter, work with roll forming machine speed

Two modes operate: automatic and manual type

Button press operate, work easy

Language: Chinese and English or as acustomer' need

Hydraulic oil pump

Hydraulic oil into the hydraulic oil tank

Pump motor drives the axis relax or tension, small car move forward or backward, move up or move down

Motor Power: 4 KW Oil pressure: 8-10 MPa

Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 15 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
