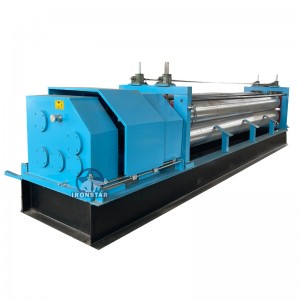

4m thin barrel roller roll forming machine for Africa

4m thin barrel roller roll forming machine for Africa

Short Description:

Thin barrel roller machine popular sell in many countries, common Corrugated roofing sheet rolling thickness from 0.14-0.4 mm, material use PPGI (Pre-Painted Galvanized Steel ) or GI material



We sell lots of such Thin barrel roller machine to South Africa, Tanzania, Nigeria, India Guinea etc. We can assure finished products overlap accuracy control in ±1 mm.  Size can customize can your need size



When thickness from 0.3-0.6 mm, corrugated roofing sheet roll forming machine is suggested



When thickness from 0.14-0.4 mm, Thin barrel roller machine is suggested, common customer use cutting machine cut to need length, than use roller machine roll corrugated sheets




  • Raw material: PPGI or GI
  • Warranty: 3 years
  • Export port: Tianjin port
  • Payment Terms: T/T, L/C, D/A, D/P
  • Container: 20 feet container
  • Working days: 40 working days
  • Product Detail

    Product Tags

    Product drawing

    18-76-1064

    Product show

    Roll forming machine

    Diameter of thin barrel roller machine

    NO

                Type

    Specification

    1

    Raw material Type PPGI
    Thickness 0.14-0.4 mm

    2

    Products Material width 4m
    Pitch 76mm(±2mm)
    Depth 18mm(±1.5mm)

    3

    Main body Solid shaft material Manganese steel
    Machine frame Steel plate welding
    Machine size About 5.9*2.5*1.5 m
    Machine weight About 8.5 tons
    Machine color As customer need
    Working speed 6-14 times/min
    4 Power Motor SIEMEN
    Main motor 7.5 KW
    Voltage 380V/50HZ, 3 phase or ass customer' request

    5

    Control system Labour Four people
    Language Chinese and English or as customer' request

    Thin barrel roller machine

    Roller material: 45# steel with 0.05mm chrome

    roller surfaces polish, hard plating dealing

    Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

    Roll forming machine
    Roll forming machine 1
    Roll forming machine 2
    Roll forming machine 3

    Other corrugated maybe you need

    corrugated roofing sheet roll forming machine_副本1

    Packing & Payment & Service

    1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

    2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

    3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

    4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

    5). Warranty: 12 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

    6). Package: One complete equipment needs a 20 feet container to hold.

    Certificate CE & ISO9001
