6m foot press bending machine

Short Description:

Hydraulic bending machine control by foot, it can bend many degree, more flexible and easy. Price also very cheap, As customer request, bending machine can customized to 4 m 6 m or 8 m machine, thickness most use is 0.3-1 mm, if you need max 2 mm, please talk with me the details.

If you want to buy bending machine, please tell me your used material, thickness and width, Than I will give u best machine choice and quotation.

Bending machine | metal bender | sheet metal bending | 4m foot press bending machine

Raw material: Galvanized steel or PPGI

Warranty: 3 years

Export port: Tianjin port

Payment Terms: T/T, L/C, D/A, D/P

Container: 20 feet container

Working days: 20 working days

Send email to us Download as PDF

Product Detail

Product Tags

Bending machine for different shapes

Bending machine working video

Diameter of 6m bending machine

NO	Type		Specification
1	Raw material	Type	Galvanized steel or PPGI
		Feeding width	1250/1220/1200/1000mm or as customer' need
		Material length	4/6/8 m
		Thickness	0.3-1 mm
2	Main body	Machine size	About 6.611.8 m
		Machine weight	About 2.3 tons
		Machine color	As customer need
		Operation	Control by foot
		Working speed	Common speed 8-20 m/min
3	Power	Main motor	3 KW
		Cutter pump motor	3 KW
		Voltage	380V/50HZ, 3 phase or ass customer' request
4	Control box	Language	Chinese and English or as customer' request

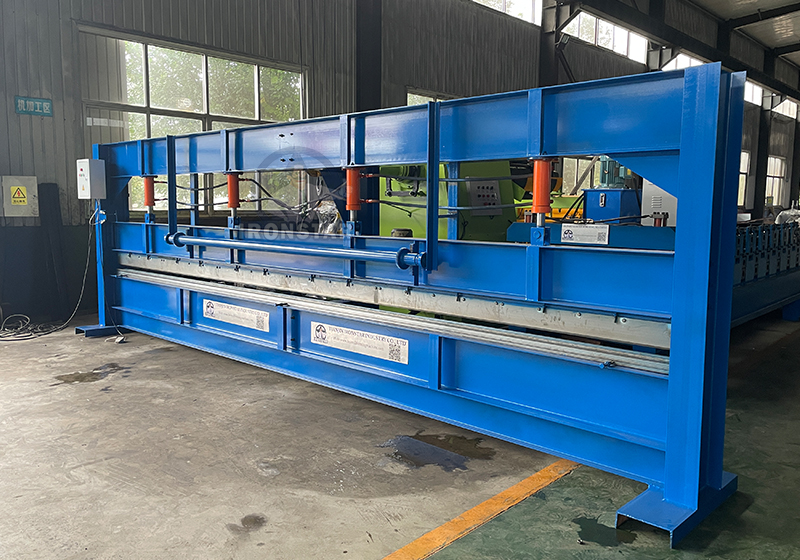

6m bending machine

Bending blade

This bending mould can bend many shapes

You can roatate the bend mould to change shape

Also by foot press strength you can change shapes

Foot press controller

Foot press countroller control bender move up and down

Press left controller, bender move up to leave material

Press right controller, bender move down to bend shape

Hydraulic oil pump

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 20 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
